Position: Primary Battery > Lithium Maganese Dioxide Battery
Lithium Maganese Dioxide Battery
- Model：CR series
- Views：2522
Description：LITHIUM MAGANESE DIOXIDE BATTERY
LITHIUM MAGANESE DIOXIDE BATTERY
1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy density of Li/MnO2 battery is up to 370Wh/kg and above.
2.High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)
3.Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes. On the other hand, Forte also offers a wide range of options for varied needs; we can also provide the cells with pulse current up to several amperes.
4.Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating temperature endures from -40℃ to +70℃.
5.Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly capacity loss of the CR series less than 1% .
6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.
7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte
8.Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of the wastes are naturally degradable and no long-term pollution to environment.
APPLICATION：
Utility meters (water, electricity, gas meters and AMR)
Alarm or security equipment (smoke alarm systems and detectors)
GPS tracking
Teal time clocks
Remote monitoring systems
Car electronics
Photo cameras
|
International Model Size |
Model Number |
Max Dimension |
Weight |
Open Circuit Voltage |
End Voltage |
Nominal Capacity |
Max Continuous Operating Current mA |
Max Pulse Discharge Current |
|
1/2AA |

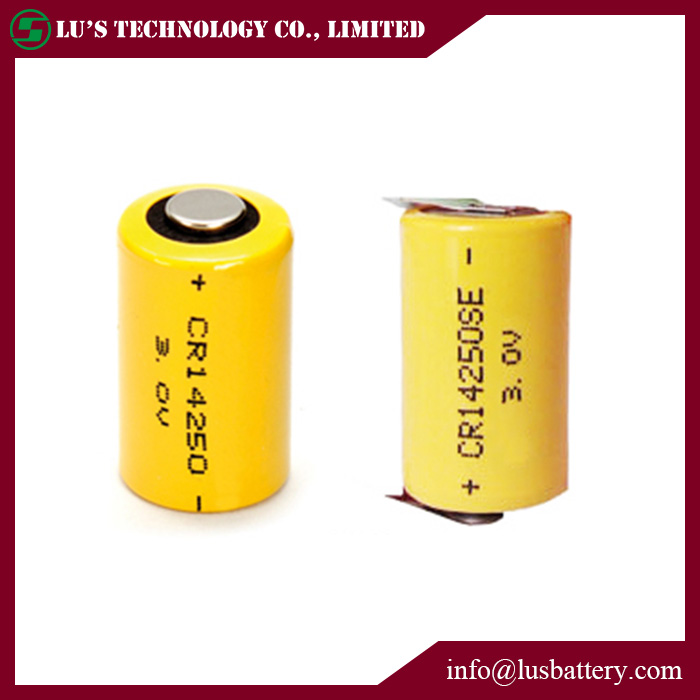

CR14250 |
φ14.5X25.2 |
10 |
3.0 |
2.0 |
600(5mA) |
300 |
1000 |
|
2/3AA |
CR14335 |
φ14.5X33.5 |
14 |
3.0 |
2.0 |
800(5mA) |
500 |
1200 |
|
AA |
CR14505 |
φ14.5X50.5 |
21 |
3.0 |
2.0 |
1500(10mA) |
1500 |
3000 |
|
CR123A |
CR17335 |
φ17.0X34.5 |
20 |
3.0 |
2.0 |
1400(10mA) |
1500 |
3000 |
|
A |
CR18505 |
φ18.8X50.5 |
33 |
3.0 |
2.0 |
2400(10mA) |
1800 |
3000 |
|
C |
CR26500 |
φ26.2X50.0 |
53 |
3.0 |
2.0 |
5500(10mA) |
2000 |
3000 |
|
D |
CR34615 |
φ34.0X61.5 |
108 |
3.0 |
2.0 |
11000(10mA) |
2000 |
3000 |
