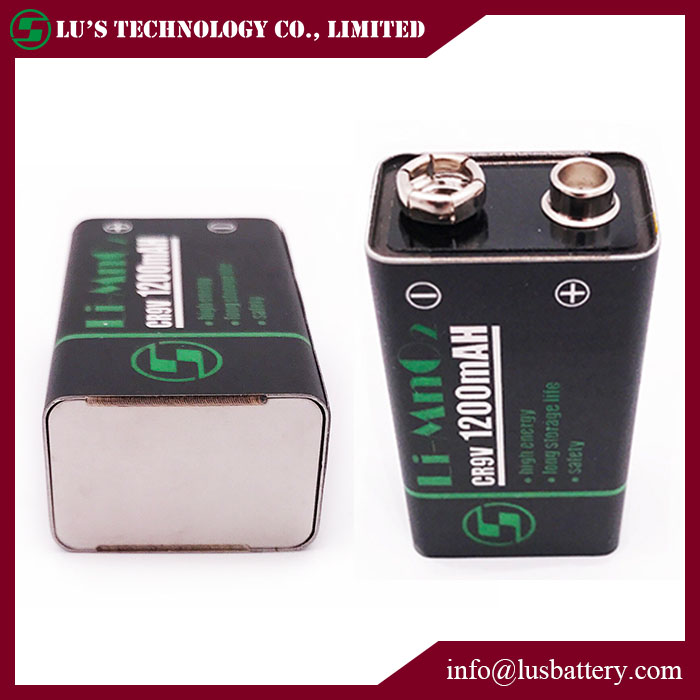

CR9V/P/U9VL-JP

Battery system: lithium manganese battery (Li-MnO2)

Battery type: CP164248

Nominal voltage: 9.0V

Nominal capacity: 1200mAh

Operating temperature range: -20 DEG C, ----60 DEG C

Storage temperature range: -40 DEG C, ----60 C

Maximum continuous discharge current: 150mA

Maximum pulse discharge current: 300mA

Battery terminals: nickel (-), stainless steel or nickel (+) lugs

Storage life: 10 years

UL/UN certification: UN38.3

Main points of flexible packaging lithium manganese battery

Flexible package structure design, special negative electrode structure design, self sealing diaphragm: improve battery safety;

Special raw material pretreatment: improve battery storage and comprehensive performance;

Continuous coating technology: improve battery performance, consistency and reliability;

Special electrolyte formula: improve battery environment, adaptability and storage performance;

HRL coating technology: improve battery safety performance and storage performance;

Battery integrated design technology: to ensure the highest safety performance of batteries, comprehensive design of the performance;

Large capacity flexible packaging lithium manganese battery technology: improve battery composition, group consistency;

Hybrid battery technology: both high specific energy and high pulse current performance.
